Canoga Perkins 2345 Fiber modem for DS3 extensions
Optically Extend T3 and DS3 Up To 100km
Can be use to  tie building communications together at the T3 - DS3 level


The perfect solution for the Telco Demark in the wrong place or even the wrong building.
The 2345 DS3 Fiber modems will let you extend end points out to 100KM.

horizontal rule

 Canoga Perkins 2345
T3 DS3 Fiber modem

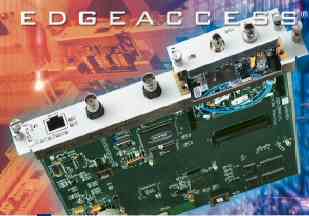

The EdgeAccess® Canoga Perkins 2345 DS3 Fiber modem is an SNMP managed multi-featured fiber optic modem that optically extends standard T3/DS3 (44.736Mbps) over single mode or multimode fiber optic cable. It is designed to enable Service Providers, Carriers, Government, Military and Corporate Enterprise to expand the capabilities of their existing data communications infrastructure. The 2345 transports any B3ZS coded, framed data stream and provides a transparent link extension when transporting C-bit Parity and M13 framed signals. It is available as a standalone and as a rack-mount card with modular, hot-swappable, and interchangeable Optical Line Interface Modules (OLIM). The rack-mounted card is part of the Universal Chassis System (UCS). SNMP support is available for both the rack-mount and the standalone versions with end-to-end monitoring and configuration facilitated via the Side-band Management Channel. The network manager can gather statistics and link information from the remote end. Software upgrades can be downloaded remotely.

horizontal rule

Features of the DS3 Fiber Optic modem

bullet

Optically Extends T3/DS3 Up To 100km

bullet

Single Mode and Multimode Fiber

bullet

Performance Monitoring Per ITU-G.826 and RFC2496

bullet

Supports B3ZS Line Coding and AMI Pulse Coding

bullet

Supports M13 and C-bit Parity Framing Formats

bullet

Transparent; Passes FDL and FEAC Overhead Bits

bullet

VT100, SLIP, PPP, and SNMP Management Support

bullet

End-to-End Side-band Management

bullet

Modular With Hot-swappable and Field Replaceable OLIMs

bullet

Features Optical and Full Modem Redundancy Options

bullet

Local and Remote Loopback Diagnostics

bullet

Input and Output Alarm Relays

bullet

NEBS Level 3 Tested and Certified


 Canoga Perkins 2345
Fiber modem

horizontal rule

To reduce critical circuit downtime, fiber path and full hardware modem redundancy options are available. In each option, failure in the primary causes an automatic  switchover to the secondary fiber link. The 2345 DS3 Fiber Optic modem is ideal for extending T3 from the telco demarcation point and WAN, as well as extending interconnection between T3 multiplexers. For applications that require multiple modems, refer to the Universal Chassis System (UCS) data sheet.

horizontal rule

Specifications of the  Canoga Perkins 2345 T3 DS3 Fiber modem

DIAGNOSTIC LEDs
Status (STA), Configuration (CFG), Composite
Loss of Sync (CLS), Test/Loopback (TST),
Loss Of Sync (LOS), Local Pattern String (AIS),
Optical Signal Quality Level (SQL)

SWITCHES
Recessed Reset (Standalone and Rackmount)
Loopback and Console (Standalone)

ALARMS
Dry Contact Output and Alarm Input (Both)
Alarm Input (Standalone)

REDUNDANCY
Fiber Path or Full Modem

PHYSICAL
Dimensions
Standalone
1.7"H x 8.5"W x 11.5"D
(44 x 215 x 292mm)
Rackmount
1.0"H x 7.9"W x 10.4"D
(25 x 201 x 264mm)



Weight
Standalone 3.2 lbs (1.45kg)
Rackmount 1.2 lbs (0.54kg)

POWER
Standalone
90 to 275VAC, 47 to 63Hz Auto-ranging, 10W Max.
38 to 72VDC, 9.1W Max.
Rackmount
10W Max. (See UCS 1000 Specifications)

OPERATING ENVIRONMENT
Temperature
0° to 50°C
Humidity
Up to 95% (Noncondensing)

ELECTRICAL CONNECTORS AND IMPEDANCE
BNC 75 ohm Unbalanced

OPTICAL INTERFACE CONNECTORS
ST 850nm LED
ST, SC, FC/PC 1310nm/1550nm Laser

MANAGEMENT
Local Terminal (VT100)
SNMP Through Dial-in for Standalone
SNMP Through UCS for Rackmount



horizontal rule

Canoga Perkins 2345 Fiber modem
optically extends T3 DS3 over fiber

horizontal rule

EdgeAccess® 2345 T3 Fiber Optic Modem

MODEL DESCRIPTION

Base Unit Including Electrical Interface (requires L123 or L122 OLIM)
2345-2000 Rack mount for Chassis installation
2345-1100 Standalone with SNMP, 120-240 VAC power supply
2345-1400 Standalone with SNMP, -48 VDC power supply

Optical Line Interface (OLIM)
L123-1321 1310 nm Laser, SM/MM*, 17dB, ST connector
L123-1322 1310nm Laser, SM/MM*, 17dB, FC/PC connector
L123-1324 1310nm Laser, SM/MM*, 17dB, SC connector
L123-1331 1310nm Laser, SM/MM*, 26dB, ST connector
L123-1332 1310nm Laser, SM/MM*, 26dB, FC/PC connector
L123-1334 1310nm Laser, SM/MM*, 26dB, SC connector
L123-1531 1550nm Laser, SM, 26dB, ST connector
L123-1532 1550nm Laser, SM, 26dB, FC/PC connector
L123-1534 1550nm Laser, SM, 26dB, SC connector

Dual Path-Redundancy OLIM (for redundant path configurations only; not required for full modem redundancy)
L122-1321 Redundant, 1310nm  Laser, SM/MM, 17dB, ST connector
L122-1322 Redundant, 1310nm Laser, SM/MM, 17dB, FC/PC connector
L122-1324 Redundant, 1310nm Laser, SM/MM, 17dB, SC connector
L122-1331 Redundant, 1310nm Laser, SM/MM, 26dB, ST connector
L122-1332 Redundant, 1310nm Laser, SM/MM, 26dB, FC/PC connector
L122-1334 Redundant, 1310nm Laser, SM/MM, 26dB, SC connector
L122-1531 Redundant, 1550nm Laser, SM, 26dB, ST connector
L122-1532 Redundant, 1550nm Laser, SM, 26dB, FC/PC connector
L122-1534 Redundant, 1550nm Laser, SM, 26dB, SC connector

Rack Adapters for standalone modems
A001-9001 19" Rack Mount Kit for single  modem
A001-9002 23" Rack Mount Kit for single  modem
A001-9003 19" Rack Mount Kit for 2 side-by-side  modems
A001-9004 23" Rack Mount Kit for 2 side-by-side  modems
A001-9005 Wall Mount Kit

Cables
C002-000 BNC "Y" Cable for Full Modem Redundancy
C001-000 Cable for Redundant Standalone Modems

SPARE USER MANUAL for Model 2345
2345-UM
