Motorola UDS RM16M
Rack / Chassis |
The Versatile RM16M 16 slot rack enclosure
UDS Motorola Telenetics
RM16 - RM16M rack shelf chassis enclosure
jump to
manuals
Can be used on dial or lease line modems with restoral,
DSU/CSU's
or ISDN, the RM16M is the right choice. Power options include 115 VAC, -48 VDC, 230 VAC;
RJ45 or Mass Termination in a rack mount solution, the RM16M shelf is THE product of
choice.
Motorola can provide you with the correct solution to your Rack Mount requirements
in a simple, easy to use rack system. Whether you need V.3600 modems, FT100 dual port T1
DSU, or a UTA 220 ISDN card, there is a rack to fit your requirements.
|
RM16M
19 Model 1 19" by 7.25" tall MOD TEL 115VAC
|
|
RM16M
19 Model 2 19" by 7.25" tall MASS Term 115VAC
|
|
RM16M
Model 3 19" by 7.25" tall Segmental 115VAC
|
|
RM16M
Model 20 23"by 7.25" tall Mass Term 48VDC
|
|
RM16M
Model 21 19" by 7.25" tall Mass Termination 48VDC
|
|
RM16M
Model 23 19" by 7.25" tall Segmental 48VDC
|
|
RM16M
Model 24 19"by 7.25" tall MOD TEL 48VDC
|
|
RM16M
Model 27 19" by 7.25" tall Dual MOD TEL 115VAC
|
|
RM16M
Model 28 19" by 7.25" tall Dual Mass Termination 115VAC
|
|
RM16M
Model 33 19" by 7.25" tall Dual MOD TEL 48VDC
|
|
RM16M
Model 34 19" by 7.25" tall Dual Mass Termination 48VDC
|
( Shown without a power supply)
The RM16M shelf is the ideal 16 slot enclosure for all your transmission product
requirements. This enclosure features modular, redundant power supplies, multiple
backplane configurations and the ability to mount it in either a 19" or a 23" (19" or
23' wide by 7.25" tall by 10" deep) cabinet using a
reversible bracket. It supports the following Motorola transmission
products: V.3229, V.3400, V,3600 analog modems, UTA 220 ISDN TA, MR64 DSU/CSU,
and FT100 T1-Fract. T1 DSU/CSU.
Models
The Model 1 enclosure is a 115 VAC enclosure featuring a
full backplane to support 16 PSTN V.32XX modems. Each slot is equipped with one RJ45
modular jack and one RS 232 DTE (DB25 F) interface.
Part # 62005201
The Model 2 enclosure. Same as above except the backplane
has 2 PSTN 50 pin Mass Termination connectors with 4 port wire wrap in place of the RJ45
connections.
Part # 62005202
The Model 3 enclosure is our modular enclosure for maximum
flexibility. This 115 VAC enclosure ships with blank segments instead of a backplane
enabling "mix and match" of modems and DSU/CSU's in the same enclosure.
DSU/CSU
cards (MR64 and FT100) ship with a single slot backplane, modem back-planes are ordered
separately.
Part # 62005203
Other shelves include 230 VAC and -48VDC versions of above, as
well as lease line and dial back-up via dual modular or dual mass termination
back-planes.
The following page contains the currently available models as well as options and
accessories.
RM16M Manuals
jump to
UDS Motorola M16M AC
version manual over 2 meg PDF file
jump to
UDS Motorola M16M DC
version manual over 2 meg PDF file
Telenetics
jump to
RM16M
manual over 2 meg PDF file
| Product |
|
| Code |
Description |
|
62005201
|
RM16M
19 Model 1 19" by 7.25" tall MOD TEL 115VAC
|
|
62005202
|
RM16M
19 Model 2 19" by 7.25" tall MASS Term 115VAC
|
|
62005203
|
RM16M
Model 3 19" by 7.25" tall Segmental 115VAC
|
|
62005220
|
RM16M
Model 20 23"by 7.25" tall Mass Term 48VDC
|
|
62005221
|
RM16M
Model 21 19" by 7.25" tall Mass Termination 48VDC
|
|
62005223
|
RM16M
Model 23 19" by 7.25" tall Segmental 48VDC
|
|
62005224
|
RM16M
Model 24 19"by 7.25" tall MOD TEL 48VDC
|
|
62005227
|
RM16M
Model 27 19" by 7.25" tall Dual MOD TEL 115VAC
|
|
62005228
|
RM16M
Model 28 19" by 7.25" tall Dual Mass Termination 115VAC
|
|
62005233
|
RM16M
Model 33 19" by 7.25" tall Dual MOD TEL 48VDC
|
|
62005234
|
RM16M
Model 34 19" by 7.25" tall Dual Mass Termination 48VDC
|
|
|
| Product |
|
| Code |
Description |
|
6500205200020
|
Backplane
19 Left Side Single Mod
|
|
6500205300020
|
Backplane
19 Right Side Single MOD
|
|
6500207100010
|
Backplane
19 Left Side Mass Termination
|
|
6500207200010
|
Backplane
19 Right Side Mass Termination
|
|
6500299000010
|
Backplane
19 Left Side Dual MOD
|
|
6500299100010
|
Backplane
19 Right Side Dual MOD
|
|
6500299500010
|
Backplane
19 Right Dual Mass Termination
|
|
6500299600010
|
Backplane
19 Left Side Dual Mass Termination
|
|
|
| Product |
|
| Code |
Description |
|
6500216300000
|
Blank
Segment Assy
|
|
6500291000010
|
Backplane
1 Slot DB25/Dual Modular
|
|
6500425400010
|
Backplane
1 Slot DB25/Single Modular
|
|
|
| Product |
FT100
backplane options
|
| Code |
Description |
|
6500378800010
|
Backplane
2 Slot 4 Port Segment
|
|
6500378900010
|
Backplane
4 Slot 8 Port Segment
|
|
6500379000010
|
Backplane
8 Slot 16 Port Segment
|
|
6500446200010
|
Backplane
8 Slot 16 Port Segment
|
|
|
| Product |
|
| Code |
Description |
|
6500204900010
|
Power
Supply RM16 115VAC
|
|
6500238500010
|
Power
Supply RM16 Redundant 48VDC
|
The
Telenetics RM16 Nests Shelf -
Rack - Chassis part numbers
these part number are in production
|
|
RM16 Nests for Sunrise and Telenetics Products
(19" and 23" rack-compatible) |
|
|
RM16M rack Nests feature modular, redundant power supplies, multiple
backplane configurations and the ability to mount in either a 19" or 23"
cabinet using a reversible bracket. The RM16M supports the V.3600 modem
series, MR64 CSU/DSU, all FT100 CSU/DSU, and Telenetics' DSP9612 and
MOT202T modems. (Plus many other legacy Motorola modems.) |
|
TEL-62005083 |
RACK ADAPTER |
|
TEL-62005098 |
Nest Adapter for Standalone Modems with Mini LCD |
|
TEL-62005203 |
Model 3 - 110/120 VAC (NO BACKPLANE). DCE and DTE connectors not included
- customer must order individual backplane segments separately |
|
TEL-62005223 |
Model 23 - 48 VDC (NO BACKPLANE). DCE and DTE connectors not included -
customer must order individual backplane segments separately |
|
TEL-62005227 |
Model 27 - 110/120 VAC 16 qty. RJ-11 Telco and Telset jacks with dial
backup support; 16 DB25 DTE |
|
TEL-62005228 |
Model 28 - 110/120 VAC 2 qty. Dual-50 pin mass termination DCE connectors
with dial backup support; 16 DB25 DTE |
|
TEL-62005233 |
Model 33 - 48 VDC 16 qty. RJ-11 Telco and Telset jacks with dial backup
support; 16 DB25 DTE |
|
TEL-62005234 |
Model 34 - 48 VDC 2 qty. Dual-50 pin mass termination DCE connectors with
dial backup support; 16 DB25 DTE |
|
TEL-62005502 |
Model 502 - 220/240 VAC 16 qty. RJ-11 Telco and Telset jacks with dial
backup support; 16 DB25 DTE |
|
TEL-52005337 |
*OEM VERSION ONLY* Model 37 - 110/120 VAC 16 qty. RJ-11 Telco and Telset
jacks with dial backup support; 16 DB25 DTE |
|
TEL-6500204900010 |
Power Supply 110/120 VAC spare or replacement unit |
|
TEL-6500238500010 |
Power Supply Card 48 VDC spare or replacement PWA |
|
TEL-6500304800010 |
Power Supply 220/240 VAC spare or replacement unit |
|
|
|
|
|
8 Slot Backplanes - RM16M (for models 62005203, 62005223 only) |
|
TEL-6500299000010 |
BACKPLANE 19" LEFT SIDE DUAL MOD TEL DB25 |
|
TEL-6500299100010 |
BACKPLANE 19" RIGHT SIDE DUAL MOD TEL DB25 |
|
TEL-6500299500010 |
BACKPLANE 19" RIGHT SIDE DUAL MASS TERM DB25 |
|
TEL-6500299600010 |
BACKPLANE 19" LEFT SIDE DUAL MASS TERM DB25 |
|
|
|
|
|
Single Slot Segmentable Backplanes - RM16M (for 62005203, 62005223 only) |
|
TEL-6500216300000 |
BLANK - SINGLE SEGMENT ASSY PLATE |
|
TEL-6500291000010 |
Backplane 1 Segment - Dual Mod Tel/DB25 DTE |

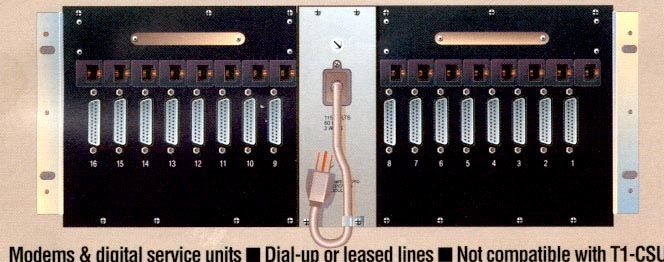

UDS RM16M Model 1 Chassis/Rack
fits all older "mini modem cards (stand alone or rack card)" modems
(with out dial back-up)
DS RM16M Model 2 Chassis/Rack 50 pin
Mass Term / Wire Wrap fits all older "mini modem cards (stand alone or rack card)" modems
(with out dial back-up)

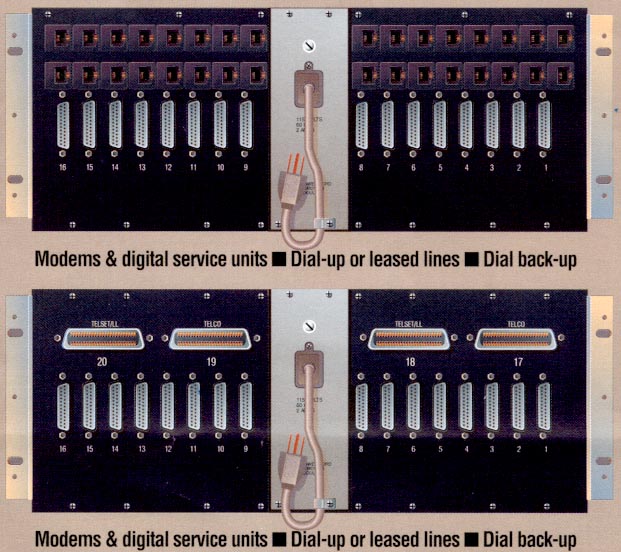

DS RM16M Model 27 and 28 Chassis/Rack 50
pin Mass Term / Wire Wrap -
fits all older "mini modem cards (stand alone or rack card)" modems
(with out dial back-up) - use this chassis for any modem or CSU
that has a dial back-up feature
