UDS 201BC/AS Modem |
UDS 201 BC/AS Modems are reliable
2,400bps transmission compatible with Bell 201B and 201C
Synchronous Asynchronous modems in the Multi-Point / Multi-Drop, Dial, 2 or 4
wire lease line mode.
We stock UDS 201BC/AS modems in refurbished and
used
UDS
201 SERIES 2400 bps modems
UDS 201C/D
modem
UDS 201BC/AS modem |
 |
|
UDS
201 SERIES 2400 bps modem
UDS 201 series modems operate at 2400 bps and are Bell compatible.
Internal diagnostic features allow the user to isolate communications
faults to the modem, telephone line or data terminal equipment.

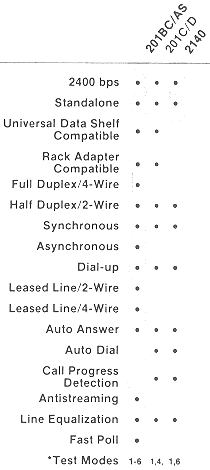

PRODUCT HIGHLIGHTS
* 201BC/AS modem Operates over 2-wire dial-up or 4-wire
leased lines; Provides synchronous or asynchronous operation
* 201C/D modem Includes serial synchronous auto dialer which utilizes
bisync protocol for DTE dialing
* 2140 Multi-protocol dialer/modem providing 2400 bps operation compliant
with CCITT V.26 bis and Bell 201C; Auto dialing capabilities include V.25
bis, bisync, and SDLC, as well as 801 mode; Handles numbers up to 36
digits long - tone or pulse dial type; Options may be added via straps and
switches, or can be software selected
UDS 201C/D
modems

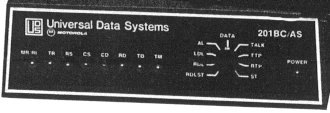

UDS 201BC/AS modems |
 |
The 201 BC/AS
modem is a 2400 bps per second modem designed far
Synchronous
or Asynchronous
data communications. The unit combines two modem types;
201B modem for leased line
operation - 2 or 4 wire
201C modem for operation of the Pubic Switched Telephone Network (PSTN)
This combination and the addition of local and remote diagnostic tests provide
flexibility in designing communication networks using any synchronous or
asynchronous data protocol at 2400 bps, The 20IBC/AS is available in either a
115 VAC or a 230 VAC powered version. When used as a 201A in leased line
operation. data is transferred in half-duplex mode on 2-Wire and in full-duplex
mode on 4 wire lines. Switched line operation in 201C mode is always
half-duplex.
Numerous options
are provided so the UDS 201BC/AS modems may be tailored to your particular
application. These options are set by straps and switches on the modem printed
circuit board Control of local and remote diagnostic tests is provided by a
rotary switch on the front panel. Modem operations monitored by observing the
nine LED indicators on the front panel. The printed circuit board containing the
RM16M 20IBC/AS modem card also fits in the UDS RM-16 shelf.
Specifications
for the UDS 201BC/AS modems
| Data Rate: |
2400 bits per
second synchronous |
| Character
Format: |
Synchronous.
or 8,9,10, of I I bit asynchronous |
| Communications
Mode: |
Over PSTN
2-wire, half-duplex over Leased Lines; 2-wire, half-duplex, at 4-wire,
full duplex |
| Modulation: |
Differentially
Phase Shift Keyed (DPSK) |
| Carrier
Frequency: |
1800 Hz±0.01% |
| Receiver
Sensitivity: |
-45 dBm or -30
dBrm selectable |
| Telephone Line
Interface: |
600 ohms
transformer coupled, transient protected |
| Line
Connection: |
Over PSTN:
Permissive or programmable
Over Leased Lines; Transmit levels selectable for 0 to -12 d8m |
| Line
Conditioning: |
Telephone line
conditioning is not required |
| Digital
Interface: |
EIA RS-232C
and CCITT V.24 |
| Automatic
Answer: |
Over PSTN:
optional automatic or manual answering |
| Originate: |
Over PSTN:
manual using exclusion key telephone |
| Dimensions: |
7"W x 2.25"H x
9.60"D: Weight is approximately 2 lb, 9 oz. |
| Temperature: |
Operating: 0
to +50C Storage. -40 to +85C |
| Humidity: |
96% relative,
non-condensing |
| Power
Requirements: |
115Vac±10%;
50/60 Hz or 230Vac±10%
50/60 Hz for applicable models.
47 to 63hz
10 Watts maximum |
|
