RAD ACE202 ATM Termination Network Unit
/ Multi-service Access Concentrator
ATM Demarcation Device or Enterprise Access Concentrator

Call us for discount pricing on  RAD Data Communications ACE202
email experts@dceexpress.com  or call 610-399-3911 for Sales

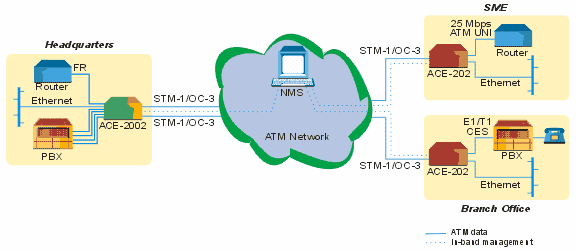

• The ACE-202 can be used as a carrier-owned demarcation device or as a corporate concentrator connected to the public ATM network.
• Extends carrier management and control up to the customer premises
• Allows service providers to terminate ATM services or offer LAN, ATM and voice/TDM services over ATM networks
• Supports CBR, VBR (rt and nrt), ABR, UBR and UBR+
• Allows multiple types of traffic management, including traffic monitoring, policing and shaping
• ATM interfaces: STM-1, E3/T3, IMA (4 x E1/T1), 25 Mbps and E1/T1
• Interworking user interfaces (plug-in modules):
• - Ethernet/Fast Ethernet
• - E1/T1, 4 x E1/T1 and E3/T3 CES
• - Frame Relay (FRF.5, FRF.8)
• - HDLC
• Optional built-in user interfaces: LAN, 25 Mbps UNI or LAN + E1/T1 CES
• Enables VBR (rt and nrt) and CBR traffic shaping with hierarchical traffic scheduling
• Enhanced control capabilities according to ITU-T I.610 OAM standard, providing end-to-end ATM QoS control, fault localization, delay measurements and performance monitoring
• Offers VPI/VCI translation (ATM cross connect)
• Service Level Agreement (SLA) enabled by events and statistics collection
• In-band SNMP management and software download
• RADview-HPOV network management application (UNIX-based)
• Optional redundant power supply
• Compact, 1U high, suitable for mounting in 19


Compact, 1U high, suitable for mounting in 19

ACE-202/AC/ETH     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/ETH/ETH     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/NULL     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/ETH     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/ETH/25M     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/ETH/CEST1     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/ETH/ETH     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/ETH/ETH/CEST1     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/AC/R/NULL     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/DC/R/ETH/ETH     MULTISERVICE ACCESS CONCENTRATOR
ACE-202/DC/R/NULL     MULTISERVICE ACCESS CONCENTRATOR

Discount pricing on  RAD Data Communications ACE202 Multi-Service Concentrator, ATM Termination Unit ,  email us at   experts@dceexpress.com   or call 610-399-3911 for Sales

jump to specs page

jump to other Other RAD Products pages

- Purchase orders accepted

- Contract Buying and Volume Discounts available !!

- Please contact us at 610-399-3911 for Sales

or email us: experts@dceexpress.com

Data Communications Experts
