Patton
T1-EtherRocket
2720/I T1/FT1 CSU/DSU |

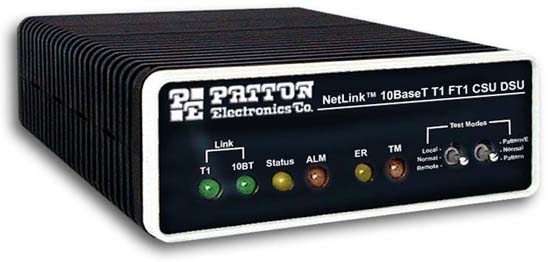

Patton’s EtherRocket 2720/I/UI
Access Unit, with integrated
T1 and 10Base-T transparent bridging.
This unit allows for high-speed PPP data connections across the Wide Area
Network at scalable data rates of nx56/nx64kbps up to 1.544Mbps, and also
connects directly to the 10Base-T branch office LAN at 10Mbps. The
T1-EtherRocket transparently forwards Ethernet packets.
|
T1-EtherRocket
|
|
2720I T1/FT1 CSU/DSU
with Integrated Ethernet Transparent Bridging
|
|
The T1-EtherRocket
makes the connection of branch office LAN simple and affordable
|
|
|
|
|
|
|
|
|
Features & Benefits |
 | Terminates T1/FT1 Circuits over a 4-Wire RJ-48C
interface |
| 10Base-T Ethernet Bridge |
| PPP (Point to Point Protocol, RFC 1661) with Bridge Control Protocol
(RFC 1638) |
| Nx56/nx64kbps rates up to 1.536 Mbps |
| Unstructured rates at 1.544 Mbps |
| D4 or ESF Framing Modes |
| Supports AMI or B8ZS/B7ZS Line Coding |
| Configuration via Software Control Port or Internal DIP Switches
|
| Six Easy-to-Read LED Indicators Monitor Data & Diagnostics
|
| Internal or network clocking |
| Made in USA |
|
| |
| Overview |
|
|

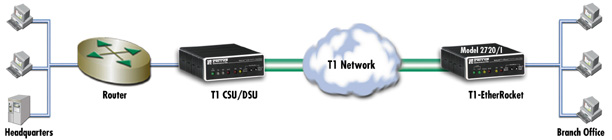

T1-EtherRocket and Remote Router Porting
Patton Electronics introduces a new way of interconnecting remote branches
to a Main Office LAN using the T1-EtherRocket. Called “Remote Router
Porting” (RRP), it offers network managers and integrators a simple and
economical way for LAN-to-LAN deployments.
At the branch office, RRP
replaces the traditional router and CSU/DSU solution with Patton’s
EtherRocket Access Unit, which includes integrated T1 and 10Base-T
transparent bridging. This unit allows for high-speed PPP data connections
across the Wide Area Network at scalable data rates of nx56/nx64kbps up to
1.544Mbps, and also connects directly to the 10Base-T branch office LAN at
10Mbps. The T1-EtherRocket transparently forwards Ethernet packets to a
headquarters LAN based on their destination MAC address.
At headquarters, RRP builds on the bridging capabilities of a router to
extend their serial or WAN ports across town or across the country. In
order for the central routed network to connect to a remote branch
Ethernet network, the serial or WAN interface of the router needs to be
configured as a PPP IP half-bridge. In this configuration the
T1-EtherRocket sends bridge packets (BPDUs) to the router’s WAN interface.
The router will then look at the layer-3 address information and will
forward these packets based on its IP address. The router’s port,
connected through the T1 network and T1-EtherRocket, appears as a virtual
Ethernet interface at the branch office network.
The Model 2720/I T1-EtherRocket supports D4/ESF framing options and
AMI/B8ZS/B7ZS line coding. Data rates, framing, and coding options are
programmed by DIP switches or from a VT-100 terminal with menu-driven
software. A full range of system and diagnostic features make setup simple
and easy.
|
|
|
|
Related Information |
|
|
|
|
2720/I/UI: Standalone T1/FT1 CSU/DSU; 10Base-T (RJ-45) Interface;
100-240VAC supply
2720/I/48: Standalone T1/FT1 CSU/DSU; 10Base-T (RJ-45) Interface;
48VDC supply
|
|
WAN Speed:
1.544 Mbps
WAN Connection: RJ-48C
Nominal Impedance: 100 Ohms
DTE Interface: EIA-530, V.35, Ethernet
Line Coding: AMI/B8ZS
Line Framing: D4/ESF/Unframed
Clock Options: Internal, or network
Diagnostics: Responds to CO-initiated D4 loop-up and loop-down
codes, ESF line loop and payload loop FDL messages, and Universal Loopback
de-activate messages
Transmit LBO: Selectable—0, 7.5, 15, or 22.5 dB, plus DSX-1
Standards: AT&T TR62411, TR54016, and ANSI T1.403
Dimensions: 0.78H x 2.1W x 3.5D in. (2.0H x 5.3W x 8.9D cm)
Test Modes: Initiates and responds to V.54 and CSU remote loops;
local loop
Pattern Generator/Detector: User selectable 511, 2047, or QRSS
Power: Universal Input (100-240VAC), or -48VDC |
