Patton 2168
Ethernet Extender |
Patton 2168
CopperLink 16.67-Mbps
Multi-Rate Ethernet Extender
Multi-rate high speed
Ethernet extension over voice-grade
wire.
![horizontal rule](_themes/blueprnt/bluhorsa.gif)
![horizontal rule](_themes/blueprnt/bluhorsa.gif)

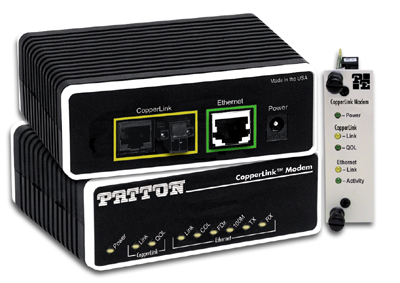

The Patton
Model 2168 Multi-Rate CopperLink Ethernet Extender enables the utilization of
existing copper infrastructure for high speed Ethernet extensions at data rates
up to 16.67 Mbps. The 2168 includes seven asymmetrical and symmetrical settings
which provide the flexibility to increase the distance or speed of the Ethernet
connections.
CopperLink applications include Ethernet extension, medical imaging,
video-conferencing, Ethernet Bridging, and inter-connecting remote devices or
remote networks to a central LAN. The multi-rate symmetrical line rates ensure
the highest possible data rate is achieved over various lengths and types of
copper wire and environments. Multi-rate asymmetrical line rates make the Model
2168 the ideal solution for service providers who want to differentiate their
services or extend the reach of their customer base. The Model 2168 allows
service providers to offer unparalleled performance for such applications as
always on Internet access, real time bi-directional video streaming, and various
multimedia applications.
If you want to take your network and voice connections farther and faster over
existing copper and eliminate the expense of fiber, Patton’s CopperLink Ethernet
Extenders are the products for you!
Just plug it in, power it on, and play!

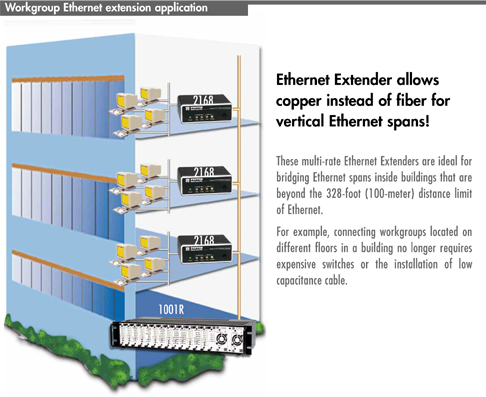

![Model 2168 application diagram](patton%202168_app.jpg)
* When ordering standalone units, it is recommended that the 2168 be ordered as
a set: one 2168/L (Local) and one 2168/R (Remote). When ordering rack cards it
is required that you match a standalone R (Remote) with a L (Local) rack card
and if you order the standalone L (Local) you must match it with a R (Remote)
rack card.
**You must specify a country specific power cord
CopperLink Line Interface: RJ-45 or terminal block
Ethernet Interface: Shielded RJ-45
POTS-ISDN Interface: RJ-45 (pin 4=ring, pin5=tip)
Transmission: Switch selectable asynchronous and synchronous line rates up to
16.67 Mbps
Surge suppression: CopperLink 20kA (8/20ms) gas tube
Power Supply: External AC: UI (100–240); DC: -48,-24, and -12; DC power supplies
are optional
Dimensions:
1.5H x 4.13W x 3.75D in.
3.81H x 10.5W x 9.53D cm)
2168 Patton
see Patton
2158
Multi-Rate CopperLink Ethernet Extender Set (Remote and Local)
2168/120-2PK: 120 VAC
2168/UI-2PK*: 100 - 240 VAC
Multi-Rate CopperLink Ethernet Extender Rack Card
2168RC/L: Local
2168RC/R: Remote
