Patton 2158 CopperLink
12.5-Mbps
Ethernet Extender |
Take your network connections faster and farther over existing voice-
grade
wire with the Patton 2158 CopperLink Ethernet Extender!
|
Patton 2158L Local and
Patton 2158R remote
|
|
CopperLink Ethernet Extender 12.5-Mbps
|
|
Patton 2158L Local and
Patton 2158R remote CopperLink Ethernet Extenders will auto-sense and configure for 10Base-T or 100Base-T as well as
full or half-duplex. |
|
2158/L/120 - 2158/R/UI
- 2158/R/UI - 2158/120-2PK - 2158RC/L -
2158RC/R
|
|
|
| Overview |
|
The Patton CopperLink Ethernet Extender offers one of the most efficient,
reliable, and cost-effective solutions for connecting peered 10/100Base-T
Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile
ISP servicesall at 12.5 Mbps! The Patton Model 2158 offers premium
performance over your existing voice-grade telephone wire, eliminating the
cost of installing new LAN grade cable or expensive fiber.
CopperLink Ethernet Extenders are compact, easy to install, and transparent
to higher layer protocols. Simply connect the network equipment to the
shielded Ethernet RJ-45F jack, the twisted-pair telephone wire to the
CopperLink RJ-45F jack or terminal block, the external power supplies to the
units and an appropriate power source, and you're ready to operate. The
CopperLink Ethernet Extenders will auto-sense and configure for 10Base-T or
100Base-T as well as full or half-duplex Ethernet operation. No
configuration is required!
Whether you are looking to make your network connections go farther and
faster, increase the efficiency of your existing wiring infrastructure, or
just simply extending your LAN, Patton's CopperLink Ethernet Extender is one
of the most simple and cost effective solutions around!

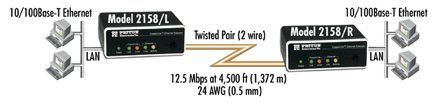

Ethernet Extension Application
Used in pairs, the Patton 2158 establishes a high-speed 12.5 Mbps
communication link inter-connecting two geographically separated LANs.
Operation is simple: packets destined for the remote LAN are sent
transparently, at full line rate, to the peered LAN. The Patton Model 2158
can also be used to reach remote PCs and other equipment and for delivering
last mile ISP services.
Back-to-Back Extension Application
Use the Patton Model 2158 units in a back-to-back configuration, using an
Ethernet crossover cable, to double the length of your high-speed Ethernet
connection!
jump to
Patton 2158 Datasheet
|
| |
|
Related
Information |
|
| |
Note: When ordering standalone units, we recommend that you order the
2158 in sets since one 2158/L (Local) and one 2158/R (Remote) is required
for each link.
Patton 2158/L: Local CopperLink High Speed Ethernet Extender, RJ-45F and
Terminal Block; No Power Supply
Patton 2158/R: Remote CopperLink High Speed Ethernet Extender, RJ-45F and
Terminal Block; No Power Supply
Patton 2158/L/120: Local CopperLink High Speed Ethernet Extender, RJ-45F and
Terminal Block; 120 VAC
Patton 2158/R/120: Remote CopperLink High Speed Ethernet Extender, RJ-45F
and Terminal Block; 120 VAC
Patton 2158/L/UI:* Local CopperLink High Speed Ethernet Extender, RJ-45F and
Terminal Block; 100240 VAC
Patton 2158/R/UI:* Remote CopperLink High Speed Ethernet Extender, RJ-45F
and Terminal Block; 100240 VAC
Patton 2158-2PK: CopperLink High Speed Ethernet Extender Set (Local and
Remote); No Power Supply
Patton v2158/120-2PK: CopperLink High Speed Ethernet Extender Set (Local and
Remote); 120 VAC
Patton 2158/UI-2PK:* CopperLink High Speed Ethernet Extender Set (Local and
Remote); 100240 VAC
*Please specify country-specific power cords
NOW AVAILABLE!
2158RC/L: Local CopperLink High Speed Ethernet Extender Rack Card;
RJ-45F and Terminal Block
2158RC/R: Remote CopperLink High Speed Ethernet Extender Rack Card;
RJ-45F and Terminal Block
The Model 2158RC rack cards are compatible with Patton's Model 1001R
high-density Telco rack system.
|
| |
|
CopperLink Interface: RJ-45 (pin 4=TIP; pin 5=RING) and two-position
terminal block (supports 1926 AWG)
Ethernet Interface: 8-position shielded RJ-45. Auto-sensing
10/100Base-T with half or full-duplex operation
Protocol: Transparent to high layer protocols. Supports 802.1Q VLAN
tagging
Transmission: CopperLink line rate: 12.5 Mbps; Data rate: 10 Mbps
full-duplex
Surge Supression: CopperLink maximum current surge: 20kA (8/20_s) gas
tube
Front Panel Indicators: Power, CopperLink Link and Error, Ethernet
Link and Activity status.
External Power Supply Options:
AC: 120 VAC and Universal Power Supply (100240 VAC)
DC: -48 VDC, -24 VDC, and -12 VDC (optional upon request)
Compliance: FCC Part 15 Class A; EMC Directive 89/336/EEC, Low
Voltage Directive 73/23/EEC; CE Mark
Temperature: 32 to 122°F (0 to 50°C)
Altitude: 015,000 ft (4,572 m)
Humidity: Up to 90% non-condensing
Dimensions:
Standalone: 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)
Rack card: 3.0 H x 0.83 W x 7.84 D in. (7.6 H x 2.1 W x 19.9 D cm)
Weight:
Standalone: 0.4 lbs (0.18 kg) without power supply
Rack card: 0.3 lbs (0.14 kg)
|
|
