Fiber Optic Multiplexer
Analog line extension

horizontal rule

4 to 24 channels of Analog or Intercom Signals over single mode or multimode fiber optic cable. It supports voice bandwidths from 300 Hz to 3.4 KHz. The analog interface is for FSK (frequency shift key) applications. It has a 600 ohm isolation audio transformer and supports voltages from 0 to 3 Vpp. The intercom interface is for 4-wire voice communication. It connects to a handset with mouth-and-ear piece.

horizontal rule

Analog and Intercom Fiber Optic Multiplexer
(Model TC8000)
     Related Products: TC1900, TC8116, TC8800

bulletUp to 24 Analog or Intercom Channels
bulletVoice Bandwidths from 300Hz to 3.4Khz
bulletPush-Button Buzzer for Signaling
bulletMultimode or Single Mode (850/1300/1550)
bulletBuilt-In Power Redundancy
bulletOptical Redundancy (Optional)
bulletRack mount or Standalone
bulletDimensions: Chassis Style SD10



Applications

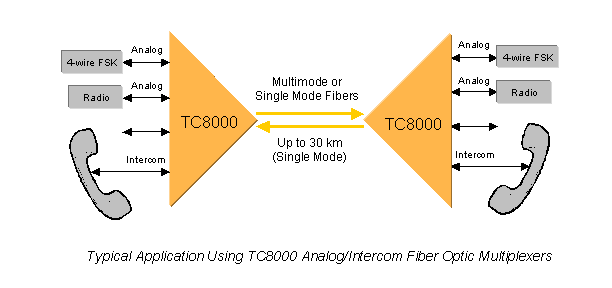

The TC8000 is frequently used to link voice communications devices in telecommunications and SCADA environments.  It is also used in harsh environments where ground loops, EMI/RFI interference and lightning conditions may occur.

Description

The TC8000 multiplexes up to 24 channels of Analog or Intercom Signals over single mode or multimode fiber optic cable. It supports voice bandwidths from 300 Hz to 3.4 KHz. The analog interface is for FSK (frequency shift key) applications. It has a 600 ohm isolation audio transformer and supports voltages from 0 to 3 Vpp. The intercom interface is for 4-wire voice communication. It connects to a handset with mouth-and-ear piece.

The TC8000 digitizes the audio signals and converts them to PCM (pulse code modulation). Since the analog and voice signals are digitized, the voice quality does not degrade over extended distances. Distances to 30 km are typical via 1300nm single mode fiber, to 4 km over 850nm multimode fiber.

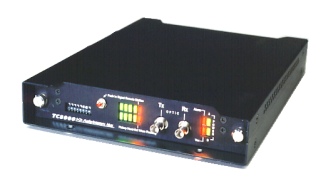

The TC8000 Fiber Optic Multiplexer is available standalone or rack mount. Standalone versions support up to 24 channels, rack mount support up to 12 channels. RJ-11 ports are provided on the rear side to connect with handsets or customer's audio devices.

Built-in power redundancy is standard on the TC8000. Optical redundancy is available as an option. Fiber Optical connectors are ST; FC is optional. Electrical connectors are RJ-11. Power is 9 to 12VDC or 115/230VAC with an external power cube.

horizontal rule

Specifications

Audio Bandwidth
   Analog..................300Hz to 3.4 KHz

Intercom...............300Hz to 3.4 KHz
Channel Capacity
   Stand Alone Unit......4 or 8 Channels
   Rack Mount Unit......4, 8, 12, 16, 20,
   ...............................or 24 Channels
   Wavelength
    .......................850nm/1300nm MM
    ......................1300nm/1550nm SM
   Fiber Optic Connectors
   ............................. ST, FC Optional
   Loss Budget* - 850/1300/1550nm
    Multimode @ 62.5/125µm.......15dB
    Single Mode @ 9/125µm........15dB
Electrical

Connector................RJ11 Female
   Max Analog Input 3V p-p
   Analog Interface 600 ohm Isolated
   Transformer
   Intercom Interface  Capacitor Coupled

System

Bit Error Rate .......1 in 109 or better
  Audio Indicator......................Buzzer
Visual Indicators....Power A, Power B
 Alarm, Vcc, Pickup Handset when
 Flashing, Push to Signal Remote Station
 Signaling Control............Push Button
Power
   Standard.............12VDC @ 500mA
   Optional...........24VDC, -48VDC, or
   ..........115/230VAC with power cube
Temperature
   Operating.....................-10° to 50°C
   High Temp (optional).....-20° to 70°C
   Storage........................-40° to 90°C
   Humidity..........95% non-condensing
Physical (Stand Alone Unit)
   Height.......................(3.53 cm) 1.4"
   Width......................(18.10 cm) 7.1"
   Depth......................(24.80 cm) 9.8"

Weight.................(831 gm) 2.4 lbs.
 * Contact factory for higher requirements
