Starcomm Modem
AC DC power

2-Wire, 4-Wire Leased Line, Synchronous or Asynchronous,
StarComm modem or AC DC Power, Hot/Cold Temperature Rated

Solutions for Utility and Industrial Automation SCADA applications including dial up and leased line modem

V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, BELL 212A, BELL 103J.

horizontal rule

Star-Comm modem 256 color.GIF (32264 bytes)

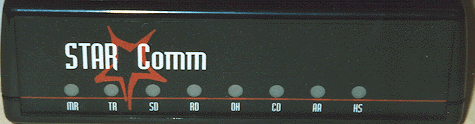

StarComm Industrial modem
Dial and Leased Line Operation
AC DC powered


bulletAT COMMAND SET
bulletV.42/MNP 2-4 ERROR CORRECTION
bulletMNP 10 EXTENDED SERVICES
bulletV.42bis/MNP5 DATA COMPRESSION
bulletGROUP 3 (CLASS I & 2) FAX
bulletRS-232-C (V.24) TERMINAL INTERFACE
bulletASYNC & SYNC DTE SUPPORT
bullet2-WIRE LEASED LINE OPERATION
bullet4-WIRE LEASED LINE OPERATION
bullet2 OR 4-WIRE SHORT HAUL OPERATION
bulletAC OR DC POWERED
bulletNETWORK MANAGEMENT

A commitment to constant improvement keeps StarComm modem communications products ahead of the industry in quality and performance. Our 33.6Kbps and 14.4Kbps models incorporate the latest advancements in modem design to deliver more performance, more features and higher reliability.

StarComm 33.6Kbps modem models provide a complete implementation of the ITU-T V.34 standard for 33.6Kbps operation and our 14.4Kbps models comply with the, ITU-T V.32bis standard for 14.4Kbps operation. In addition, all models offer complete compatibility With older standards such as V.32 and V.22bis.

StarComm high-speed modems offer the features required for compatibility with a wide range of industry standard systems and software.

horizontal rule

Starcomm modem chassis pic.GIF (24415 bytes)

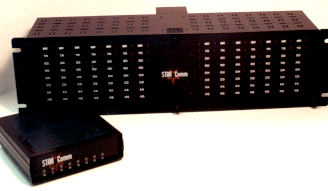

All models are available in our standard stand-alone or rack mount configurations:

horizontal rule

FEATURES AND SPECIFICATIONS

bullet

COMPATIBILITY - V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, BELL 212A, BELL 103J.

bullet

LINE TYPE - Unconditioned lease line, 2 or 4 wire

bullet

DTE INTERFACE - RS-232C (V.24).  Female DB25, Synchronous or Asynchronous: Autobaud or selectable formats and rates to 11 5.2Kbps on 3342 models or 57.6Kbps on 1442 models.

bullet

AUTO DIAL MODES - Standard Hays AT compatible dial commands or DTR dial of stored number.

bullet

ANSWER MODES - Standard auto answer or manual answer under DTE control.

bullet

ERROR CORRECTION - V.42 and MNP 2-4 error correction. MNP 10 extended cellular services.

bullet

DATA COMPRESSION - V.42bis and MNP5 data compression.

bullet

CONFIGURATION CONTROL - Standard AT commands.

bullet

DIAGNOSTICS - V.54 through AT commands.

bullet

LINE INTERFACE:
DIAL: 2-Wire Pulse or DTMF XMT level: 12dBm RCV sensitivity: -43dBm
2-WIRE LEASED XMT level: Adjustable RCV sensitivity: -43dBm
4-WIRE LEASED XMT level: Adjustable RCV sensitivity: -43dBm
* May also be used in 2 or 4-wire short haul applications.

bullet

POWER (STAND-ALONE UNITS) - Standard units automatically adjust to 9VAC or 9-14VDC. Power supply options: 5.5-14VDC, 18-75VDC, 66-16OVDC / 115, 220, 230 and 50hz VAC.

bullet

POWER (RACK MOUNT) - Standard CC-2016 rack automatically adjusts to 85-265VAC, 27-44OHz.
Optional DC supply automatically adjusts to positive or negative 36-75VDC.

bullet

ENVIRONMENTAL - Operating temperature range: -20C to +80C. Humidity: 90% non-condensing.

bullet

APPROVALS - FCC Part 68 & Part 15, Class A. Optional: International approvals available.

bullet

PHYSICAL (STAND ALONE UNITS) -Dimensions: 5.30"Lx5.05"Wx1.53"H. Weight: 12oz.

bullet

PHYSICAL (RACK MOUNT) - Fits CC-2016 rack. 4.73"Lx4.60"Wx.80"H. Weight: 9oz.

bullet

RACKS - The CC-2016-XX Series of 16 Slot Rack Mount Enclosures
These enclosures provide 16 modem slots in a standard 19 inch form factor which is 5 inches high and 6.5 inches in depth. The standard power system auto ranges from 85 to 265VAC with a frequency range of  27 - 440hz. An optional DC supply is also available for installations requiring operation on 36 - 75VDC. All rack configurations are designed for operation from -20C to +70C and offer a mean time between failure (MTBF) of 200,000 hours (22.8) years.

bullet

BRACKET - 19 Inch Rack Mount Bracket For All Stand Alone Models

bullet

This bracket provides mounting for three 5"x 5"stand alone rnodems or two 5" by 7" mufti-port modems within a standard 19 inch rack.

bullet

BRACKET - 9 Inch Wall Mount Bracket For All Stand Alone Models

bullet

This wall mount bracket may be attached to all 5" x 5" or 5" x 7" stand alone models.

horizontal rule

V.32bis (14.4kbps) Data/Fax Modems – All models offer an AT compatible command interface and support the following modulation standards: V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 212A and Bell 103J. The following modulation standards are supported for fax: V.33, V.29 and V.27. Both synchronous and asynchronous DTE are supported.

bullet1442E-003-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 9vac or 9-14vdc
bullet1442E-203-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 5.5-14vdc
bullet1442E-303-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 18-75vdc
bullet1442R-003-2 Rack mount, for 2-wire dial and 2-wire leased circuits.
bullet1442E-003-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits. Power: 9vac or 9-14vdc
bullet1442E-203-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits. Power: 5.5-14vdc
bullet1442E-303-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits. Power: 18-75vdc
bullet1442R-003-4 Rack mount, for 2-wire dial and 2 or 4-wire leased circuits.

horizontal rule

V.34 (33.6kbps) Data/Fax Modems – All models offer an AT compatible command interface and support the following modulation standards: V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 212A and Bell 103J. The following modulation standards are supported for fax: V.33, V.29 and V.27. Both synchronous and asynchronous DTE are supported.

bullet3342E-003-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 9vac or 9-14vdc
bullet3342E-203-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 5.5-14vdc
bullet3342E-303-2 Stand alone, for 2-wire dial and 2-wire leased circuits. Power: 18-75vdc
bullet3342R-003-2 Rack mount, for 2-wire dial and 2-wire leased circuits.
bullet3342R-006-2 Rack mount with network management, for 2-wire dial and 2-wire leased circuits.
bullet3342E-003-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits. Power: 9vac or 9-14vdc
bullet3342E-203-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits. Power: 5.5-14vdc
bullet3342E-303-4 Stand alone, for 2-wire dial and 2 or 4-wire leased circuits.  Power: 18-75vdc
bullet3342R-003-4 Rack mount, for 2-wire dial and 2 or 4-wire leased circuits.

horizontal rule

visit our other Star-Comm modem pages
jump to Star-Comm main page

jump to Modem Manual PDF file

jump to DC power connections diagram
(NOTE power plug polarity - center pin is positive and the out side of 5.5 barrel connector is negative)
