|RAD VMUX 2100 Voice Trunking Gateway|
RAD VMUX 2100 COMPRESSED VOICE OVER TDMoIP Voice Trunking Gateway
RAD VMUX-2100/AC, RAD VMUX-2100/AC/R, RAD
RAD VMUX-2100/DC/R, RAD VMUX-2100-PS/AC, RAD VMUX-2100-PS/DC
Great discount pricing on RAD Data Communications
- Bandwidth-efficient transmission of up to 16 E1/T1 voice trunks over a single link
- Supports voice compression techniques G.711, G.723.1 and G.729A
- 10/100 Mbps copper and fiber Ethernet interfaces
- Optional dual redundant E1/T1 WAN ports
- Dynamic bandwidth optimization over IP networks based on voice activity detection and silence suppression
- QoS support: VLAN tagging and ToS labeling
- HDLC over IP support
- SNMP, Telnet and local ASCII management options
RAD RAD VMUX-2100/AC RAD COMPACT COMPRESSED VOICE OVER TDMoIP
RAD VMUX-2100/AC/R RAD COMPACT COMPRESSED VOICE OVER TDMoIP
RAD VMUX-2100/DC RAD VOICE TRUNKING GATEWAY - DC POWER
RAD VMUX-2100/DC/R RAD COMPACT COMPRESSED VOICE OVER TDMoIP
RAD VMUX-2100-PS/AC RAD AC POWER SUPPLY MODULE FOR RAD VMUX-2100
RAD VMUX-2100-PS/DC RAD DC POWER SUPPLY FOR RAD VMUX-2100
RAD RAD VMUX 2100 Features and Capabilities:
RAD VMUX-2100 is a modular voice trunking gateway that compresses and transports up to 16 E1/T1 voice trunks over E1, T1 or IP links. RAD VMUX-2100 employs G.723.1, G.729 Annex A and G.711 compression algorithms together with RAD's unique TDMoIP multiplexing to transmit up to 496/384 voice channels, including transparent CAS and CCS signaling, over a single E1/T1 or IP link.
RAD VMUX-2100 is a unique device that can provide compressed voice transmission over both TDM and IP networks, and can easily switch between them whenever this may be advantageous, ensuring a migration path from TDM to IP networks.
RAD VMUX-2100 uses voice activity detection and silence suppression techniques to allocate bandwidth only when it is required, thereby conserving bandwidth. The gateway detects, generates and relays DTMF/MFR2/MFC signaling.

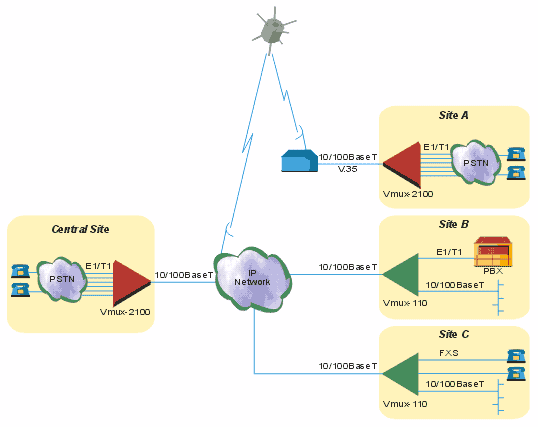

The RAD VMUX system may be used in narrowband applications, wherever there is a need to minimize bandwidth for voice transmissions, over any media (for example, satellite, TDM or IP links). Typical applications include satellite connectivity, international voice trunking, Wireless Local Loop and rural telephony.
RAD VMUX-2100 is a compact, 1U high, modular unit that can be installed in 19" racks. The unit can be configured with up to four voice compression modules, a single main link module, channelized E1/T1 modules and up to two power supply modules. All modules are plug-in and field-replaceable. The power supply and voice compression modules are hot-swappable.
