Patton Netlink 2710 T1/FT1
Low Cost CSU/DSU rack card

Patton Netlink 2710 rack card for, Frame Relay backbones, Internet access, and LAN-to-LAN services. When terminating a T1- dedicated digital circuit, the NetLink 2710 rack card supports nx56/nx64 kbps T1 framing and converts to V.35, RS-530, or 10Base-T Ethernet interfaces.

Model 2710RC
T1/FT1, High Density, Low Cost, CSU/DSU Rack Card
New T1/Fractional T1 CSU/DSU rack cards connect to a space-saving,
SNMP-manageable platform

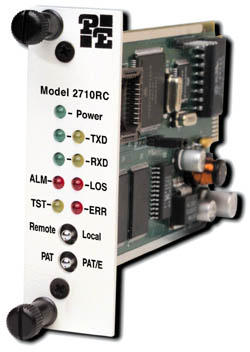

Model 2710RC photo
  Features & Benefits
  • Terminates T1/FT1 circuits over a 4-wire RJ-48C interface
  • Connects to standard CPE serial interfaces
  • Common framed n x 56/64 kbps rates up to 1.536 Mbps
  • Unstructured rates at 1.544 Mbps
  • D4 or ESF framing modes
  • Supports AMI or B8ZS/B7ZS line coding
  • Software or DIP switch configurable
  • Internal, external, or receive recover clocking
  • Also functions as a high-speed point-to-point modem
  • Made in USA

The NetLink Model 2710RC Series are T1/FT1 CSU/DSUs that provide high-speed WAN connectivity in a rack card package. Patton's 2U (8.9-cm) redundant AC/DC rack chassis accepts up to 16 rack cards, saving valuable space in central site locations.

Netlink 2710RC is an excellent choice for terminating leased lines, Frame Relay backbones, Internet access, and LAN-to-LAN services. When terminating a T1- dedicated digital circuit, the NetLink 2710RC supports n x 56 kbps and n x 64 kbps framing for T1 and V.35, X.21, RS-530, or 10Base-T Ethernet interfaces.

The Netlink 2710RC supports D4/ESF framing options and AMI/B8ZS/B7ZS line coding. Data rates, framing, and coding options are programmed by DIP switches or from a VT-100 terminal with menu-driven software. The Netlink 2710RC also supports SNMP management from a NetLink Model 1001MC SNMP/HTTP rack card. A full range of system and diagnostic features make setup simple and easy.

2710RC Application Diagram

Ordering Information
2710RC/B/B Powered T1/FT1 CSU/DSU Card; EIA-530 Interface
2710RC/A/I Powered T1/FT1 CSU/DSU Card; V.35 Interface
2710RC/D/V Powered T1/FT1 CSU/DSU Card; X.21 Interface
2710RC/IA Powered T1/FT1 CSU/DSU Card; 10Base-T Interface

WAN Speed: 1.544 Mbps
WAN Connection: RJ-48C
Nominal Impedance: 100 Ohms
DTE Interface: EIA-530, V.35, X.21, Ethernet
Line Coding: AMI/B8ZS
Line Framing: D4/ESF/Unframed
Clock Options: Internal, external, or network
Diagnostics: Responds to CO-initiated D4 loop-up and loop-down codes, ESF line loop and payload loop FDL messages, and Universal Loopback de-activate messages
Transmit LBO: Selectable—0, 7.5, 15, or 22.5 dB, plus DSX-1
Standards: AT&T TR62411, TR54016, and ANSI T1.403
Dimensions: 0.78H x 2.1W x 3.5D in. (2.0H x 5.3W x 8.9D cm)
Test Modes: Initiates and responds to V.54 and CSU remote loops; local loop
Pattern Generator/Detector: User selectable 511, 2047, or QRSS
