Patton  2158 CopperLink
 the Ethernet Extender

Make network connections faster and farther over existing voice-grade wire
with the Patton 2158 CopperLink Ethernet Extender!

Patton 2158L Local and Patton 2158R remote
CopperLink Ethernet Extenders

horizontal rule

Patton 2158L Local and Patton 2158R remote
CopperLink up to 12.5-Mbps Ethernet Extender -
speed depends on the length of the cable


  Patton  2158/L/120 - 2158/R/UI  -  2158/R/UI  -  2158/120-2PK  -  2158RC/L  -  2158RC/R

bullet

High-speed full-duplex 12.5 Mbps communications link

bulletExtends Ethernet connections up to 4,500 ft. (1,372 m)
bulletEasy 2-wire CopperLink connection via built-in RJ-45 or 2-position terminal block
bulletPasses higher layer protocols and supports 802.1Q (VLAN tagging)
bulletAutomatic learning and aging address table
bulletFive LEDs monitor power, CopperLink link and status, Ethernet link and activity
bulletAuto-sensing 10 or 100Base-T and full or half-duplex Ethernet operation
bulletNo configuration required!

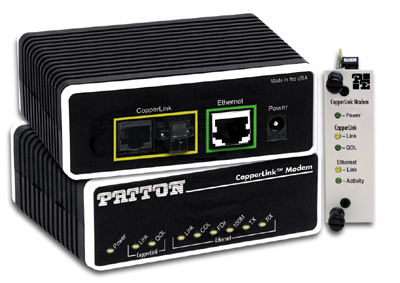

Model 2158 standalone unit & rack card



horizontal rule

Ordering Information


Note: When ordering standalone units, we recommend that you order the 2158 in sets since one 2158/L (Local) and one 2158/R (Remote) is required for each link.

Patton 2158/L: Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; No Power Supply
Patton 2158/R: Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; No Power Supply
Patton 2158/L/120: Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 120 VAC
Patton 2158/R/120: Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 120 VAC
Patton 2158/L/UI:* Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 100240 VAC
Patton 2158/R/UI:* Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 100240 VAC
Patton 2158-2PK: CopperLink High Speed Ethernet Extender Set (Local and Remote); No Power Supply
Patton v2158/120-2PK: CopperLink High Speed Ethernet Extender Set (Local and Remote); 120 VAC
Patton 2158/UI-2PK:* CopperLink High Speed Ethernet Extender Set (Local and Remote); 100240 VAC

*Please specify country-specific power cords


NOW AVAILABLE!
Patton 2158RC/L: Local CopperLink High Speed Ethernet Extender Rack Card; RJ-45F and Terminal Block
Patton 2158RC/R: Remote CopperLink High Speed Ethernet Extender Rack Card; RJ-45F and Terminal Block

The Patton 2158RC rack cards are compatible with Patton's Model 1001R high-density Telco rack system.
