The Telenetics / Motorola V3600 modem  - Automatic Rate Adaptation (ARA) Dynamically adjusts data rate backward or forward - multiple levels of security - Password, password with callback, Dial backup - Switches to a dial line if the leased line connection fails - 2 and 4-wire leased line operation -

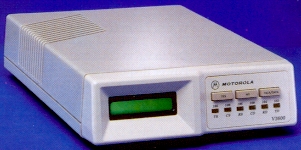

RM16M V3600-RM rack mountable modem.

Telenetics V3600 modem part numbers

V.3600 Modem 6209548200010 - Stand alone 115VAC
RM16M V.3600 Modem 6209548100010   V.3600RM - Rack mount card
V.3600 Modem 6209548200020 - Stand Alone - 12 to 60 VDC
                    230VAC 50 Hz power is optional

horizontal rule

Telenetics V.3600 Modem

The Motorola V.3600 is a high performance V.34/V.42bis data and fax modem. It allows users to transmit critical applications at 33.6 kbps in synchronous and asynchronous environments, and is capable of throughput rates up to 230.4 kbps. Motorola's technology leadership continues to offer exceptional speed, features and versatility for all networking needs.

Data Modem Overview

Compliant with ITU-T V.34, the Telenetics Motorola V3600 incorporates advanced technology that enhances operation on less than-ideal transmission lines. These include: echo canceling, automatic adaptive line equalizing, trellis coding techniques, adaptive baud rate selection, transmit pre-emphasis, automatic transmit power selection, constellation shaping, and non-linear encoding and pre-coding.

The Telenetics V.3600 modem LCD front panel gives you interactive fingertip control of option selection and modem configuration. The 32-character display and three pushbutton keys let you scroll through a complete menu of option choices, displaying the currently selected options and prompting you for changes. The V.3600 is also easily configured by AT commands or by the remote configuration feature. Nine preset factory option configuration sets simplify set up for most standard applications.

horizontal rule

Features and Benefits

bulletRemote Configuration - Front panel and AT driven
Option settings of a remote unattended modem can be changed over the phone line Password security denies access to unauthorized users
bulletAutomode - ITU-T V.8 compliant ensures connection at the highest common rate
bulletAutomatic Rate Adaptation (ARA)
Dynamically adjusts data rate backward or forward to conform to various line conditions.
bulletMultiple levels of security - Password, password with callback, user-programmed Capacity 50 passwords/50 phone numbers
bulletDial backup - Switches to a dial line if the leased line connection fails and automatically returns to leased line operation

V.3600 TEL-6209548200010 Modem - Stand alone 115VAC
V.3600 TEL-6209548100010 Modem  - Rack mount card
V.3600 TEL-6209548200020 Modem - Stand Alone - 12 to 60 VDC

bulletIntegrated V.25 bis
Combines modem and auto-call
Requires only one port on the host machine
Eliminates additional hardware
bulletSynchronous and Asynchronous
bulletAsynchronous Error correction/ Data compression
ITU-T standard V.42bis
bulletHayes AT command set compatible
bullet2 and 4-wire leased line operation
bulletStorage for nine phone numbers
bulletAutodial
bulletAuto-answer
bulletCall progress indication
bulletSoftware volume control
bulletRack mountable



jump to PDF file of manual

horizontal rule

Telenetics V3600 Modem Specifications

Data Rates
ITU-T V.34 33600, 31200, 28800, 26400, 24000,21600,19200,16800,14400,12000, 9600,7200,4800,2400
ITU V.32bis 14400,12000, 9600, and 7200 bps trellis coded ITU V.32 9600 and 4800 bps
uncoded ITU V.22bis 2400 and 1200 bps ITU V.21 300 bps (async only) Bell 212A 1200 bps
Bell 103 300 bps (async only)

Operation
2-wire full-duplex dial-up or leased line; 4-wire full-duplex leased line

Modulation
Compatible with ITU-T V.34, V.33, V.32bis, V.32, V.29, V.27, V.22bis, V.22, V.21, and Bell 212A and 103

Error Correction/ Data Compression Protocols
MNP 2-5; ITU-T V.42/V.42bis

Transmitter Output Level
-9 dBm permissive, -9 to -30 dba in I dB increments for cellular applications 0 to -30 dBrn in I dB increments
for leased line operations (V.34: -6 to -30 dBm in I dB increments for leased line operation)

Carrier Detect Level
Dynamic to -43 dBm

RTS/CTS Delay
0 to 150 ms (2 ms) in 10 ms increments

Line Equalization Automatic adaptive

Timing
Internal, external, or receive Internal/External Transmit Clock

Frequency
Selected bit rate +/-0.01%

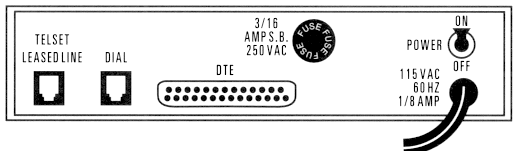

Digital Interface EIA-232D, ITU-T V.24,
DB25 female connector

Telco Connection
8-pin modular jack, dial and leased lines

Test
V.54 remote loopback control V.52 511 PN pattern Analog loopback Analog loopback with test pattern
 Local digital loopback Remote digital loopback Remote digital loopback with test pattern
Test pattern generation/ checking

Fax Specifications

Compatibility
ITU-T Group III compatible when used with Class 1 fax software

Data Rates
14400, 12000, 9600, 7200, 4800, 2400 bps

Operation
Half-duplex over 2-wire dial lines

Modulation
14400/12000/9600/7200 bps QAM; 4800 / 2400 bps DPSK; 300 bps FSK

Compliance
EIA-578; ITU-T V.21, V.27ter, V.29, V.17

General Specifications

Environmental
Operating temperature: 32-122F (0' to 50' C)
Storage temperature: -40 to158F (-40 to 70C
Relative humidity: 0 to 95%, noncondensing)

Size
Width 7.0 in (17.7 cm) Height 2.5 in (6.3 cm) Depth 9.6 in (24.3 cm)

Power Requirements
115 VAC 10%, 50/60 Hz; maximum 14 watts Available 12-60 VDC input Available
+12/-12/+5 direct input DC

Certification Compliance/ Approvals
Safety UL 1950, CSA 950 Telecom: FCC Part 68 (U.S.) IC-CS-03
Canada EMC Compliance: FCC Part 15, Class A



jump to PDF file of manual

horizontal rule



Telenetics V3600 modem

V.3600 Modem TEL6209548200010 - Stand alone 115VAC
RM16M V3600 Modem TEL6209548100010  V3600RM modem - Rack mount card
V.3600 Modem TEL6209548200020 - Stand Alone - 12 to 60 VDC
                    230VAC 50 Hz power is optional
