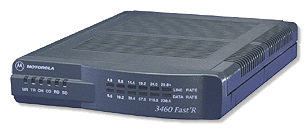

Codex 3460Fast'R Modem

Codex/Motorola/Telenetics modem  3460Fast'R - in stock

V.34, V.32bis, V.32, V.23, V.22bis, V.22,V.21, Bell 212, Bell 103
2-wire dial line or 2 or 4 wire leased line
Synchronous and Asynchronous

horizontal rule

 The born again
Codex Motorola
Telenetics 3460Fast'R
modem family

The T3460 FastR Series of network managed V.34 modems offers the performance and reliability you've come to expect from Telenetics, a worldwide leader in high speed analog technology. Integrating V.34 standard technology, the FastR modems offer optimum performance over any telephone circuit with speeds up to 33.6Kbps and actual throughput up to 230.4Kbps.

Features & Benefits | Specifications| Documentation

New Fax Beta Software
Release 4.0 offers all of the features/functionality of the T3460 Fast'R modem with the addition of fax support. The T3460 Fast'R modem supports Class 1 and Class 2.0 fax interfaces. Class 2.0 support is unique in that it can auto-detect incoming data (RAS) calls from fax calls!

At-a-glance status shows modem performance. Provides configured and actual line rate and throughput. The modem daughter card has two LEDs on the rear panel.

Telenetics Adaptive Rate System (ARS) Automode, Autobaud
Years of Telenetics modem experience have produced one of the industry’s best algorithms for selecting the optimum modulation scheme, the highest DTE rates, and automatically falling forward and back data rates to ensure the highest error free data throughput
Extensive security features
Controls unauthorized access - freezes out hackers
Integral Circuit Quality Monitoring System (CQMS)
Real time line statistics for pro-active network management
V.54 diagnostic test suite
Industry standard tests isolate any degradation in network performance
Telenetics' Customer Support
Service and support worldwide when you need it
Compliance to Industry Standards
Ensures interoperability and compatibility.
Complies to Relevant Safety & Emissions Standards
Available world wide.
Flash Memory
Easy upgrade of T3460 Fast'R software releases.
Fast'RVu Windows based PC Application Software
Simple and quick installation of central sites - in just minutes!
Pull-down, menu driven GUI Interface for configuration, test and real time modem status and line quality of both local and remote modems saves valuable time and costly mistakes - anyone can easily set-up and monitor the T3460 Fast'R modems.
9000 UX or PC SNMP management
Full management including extensive user programmable alarms on a wide variety of operational and performance parameters. Reports and statistics on faults and utilization, facilitates optimization of dial pool resources to maximize user satisfaction.
Fast'R PLUS LCD Front Panel
The 16-character display and four pushbuttons let you view and change configuration parameters. It also allows you to initiate tests and view status.


jump to PDF file of manual   1.8 meg


Transmission Rates:
33.6, 31.2, 28.8, 26.4, 24.0, 21.6, 19.2,16.8, 14.4, 12.0, 9.6, 7.2, 3.8, 2.4, 1.2Kbps (+0.01% sync; +/-2.5% async). 300 bps in async only.
Operating Modes
V.34, V.32bis, V.32, V.23, V.22bis, V.22,V.21, Bell 212, Bell 103
Calling Interfaces
Hayes AT and ITU-T V.25 bis (synchronous only)
Line Types
2-wire dial line or 2/4-wire leased line
Error Correction & Data Compression
V.42, LAP-M & MNP 4; V.42bis & MNP 5
Transmitter Section
bullet Output level tolerance: +/- 1.0 Db
bullet Output level: country dependent
bullet Timing: Selectable internal, external, loopback
bullet Operating temperature: +32° to 122°F (0° to 50°C)
bullet Storage temperature: -40° to 158°F (-40° to +70°C)
bullet Relative humidity: 0 to 95% non-condensing
Certification Compliance/Approvals
bullet Safety: UL 1950, CSA 950, IEC 950, EN60950
bullet Telecom: Country compliance as required, including FCC Part 68 (U.S.), IC-CS-03 (Canada), JATE
bullet EMC Compliance

Standalone - FCC Part 15, Class B; CISPR 22 and EN 55022, Class B; AS 3548, Class B; EN 50082-1

Nest and Dual Modem Cards - FCC Part 15, Class A; CISPR 22 and EN 55022, Class A; AS 3548, Class A; EN 50082-1

bullet CE marked for compliance to the EU LVD, EMC and TTE directive

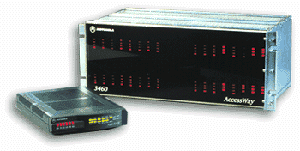

bullet AccessWay for T3460 Fast’R
bullet Size (H x W x D): 7"x 19"x10.5" (cm: 17.78 x 48.26 x 26.7)
bullet Power: 100/120/220/240 VAC nominal (switch-selectable),
bullet Frequency: 50/60 Hz or -48V DC nominal (redundant)
bullet T3460 Fast'R PLUS Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
bullet T3460 Fast’R Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
bullet T3460 Fast’R Nest Cards size (H x W x D): 0.9" x 6.75" x 9.6" (cm:2.29 x 17.15 x 24.38)
bullet T3460 Fast’R Vanguard Daughter Card size (H x W x D): 0.87" x 2.95" x 8.86" (cm:2.20 x 7.50 x 22.50)
Power Requirements
Standalone: 9V AC, 50/60 Hz, 800 mA
Nest: 100/120/200/240V AC, 50/60 Hz, 1.2/1.0/0.6/0.5 A
Back to Top
Reference Guide for the 3460 Fast'R and Fast'R Plus Modem.

Reference Guide, (manual)  Revision F - 1.8 meg file
current for Release 5.1 (English)


  Telenetics own TFast'R Vu configuration software ensures rapid and efficient network deployment. TFast'R Vu allows you to configure, monitor and test both local and remote modems over a separate network control channel - that means no interruptions in data transmission.


Features & Benefits | Specifications

TFast'R Vu is an easy-to-use Windows based application that helps you:
bullet View and set modem options without learning AT commands
bullet Check device, circuit, and signal status without special tools
bullet Copy configurations without leaving your keyboard
bullet Execute line and modem test without scopes and meters
bullet Upgrade modem software
TFast'R Vu's Functions

You may use TFast'R Vu to:

bullet Set options in stand-alone and card modems
bullet Copy and save configurationsInitiate and terminate dial calls
bullet Monitor modem and line status
bullet Initiate line and device tests
bullet Maintain your telephone book of stored numbers
bullet View real-time negotiated-connection data
bullet Download new modem software
TFast'R Vu is especially useful for installations of multiple modems, but it is not required for modem setup and operation.


TFast'R Vu requires a computer with the:
bullet Windows 3.1, Windows 95 or Windows NT operating system
bullet 486DX2 or Pentium-class processor11 MB of RAM
bullet 8-pin DIN to DB25F cable (product code 40384) to connect to a PC comm port
bullet CD-ROM drive if installing from CD included with 3460 AccessWay nest and 3460 Fast'R Stack Six stacking kit
Platforms Supported by Fast'RVu3460 Fast'R Modem Familty: 326X Modem Family
TFast'R Vu Release2.0 now supports the 326X platform. This will allow existing customers to take advantage of the ease of use that TFast'R Vu offers. Only features supported on the 3460 are supported on the 326X at this time, including configuration sets and gets, all forms of status gathering, testing, and miscellaneous modem commands. Non-supported features (those unique to the 3260 eg. restoral/SDC commands) can still be configured via the 326X front panel buttons/LCD display.



Fast'R Vu, An Industry First! With the Fast'R Vu manager, implementation and upgrades have never been easier!

bulletWindows® based PC application
bulletPull down menus
bulletGraphic displays for device and line status
bulletCopy and paste global configuration
bulletNon-disruptive changes

Telenetics Sunrise Series
The 3460FastR modem



To Order

39500 3460 FAST'R S/A U.S.
39600 3460 FAST'R DUAL MODEM NEST Card U.S.
39501 3460 FAST'R S/A CANADA
39708 3460 ACCESSWAY 110 V RJ TERM
39719 3460 ACCESSWAY 110/220V SPR PWR SUPPLY
29900 3460 FAST'R SLR S/A U.S.
39900 3460 FAST'R SLR NEST Card U.S.
29901 3460 FAST'R SLR S/A CANADA
39901 3460 FAST'R SLR NEST Card CANADA
39733 3460 ACCESSWAY 110 V RJ TERM
